pdf 502-600-102 i2 Dec75 - 660 1660 2660 Series Telephone Sets Popular

755 downloads

Download (pdf, 1.06 MB)

502-600-102-I2-660-1660-2660-Telephone-Sets_tl.pdf

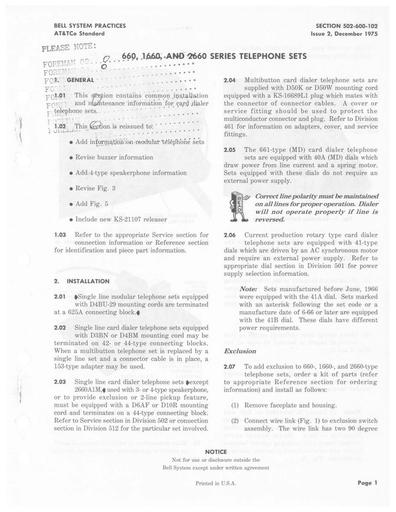

502-600-102 i2 Dec75 - 660 1660 2660 Series Telephone Sets

Includes installation and maintenance for both rotary and Touch-tone sets.

Table A - Replacement Faceplates for 1660-series Telephone Sets with Touch-tone Dial Converted from 10 to 12 Buttons.

Some rotary dial-related notes:

2.05 The 661-type (MD) card dialer telephone sets are equipped with 40A (MD) dials which draw power from line current and a spring motor. Sets equipped with these dials do not require and external power supply.

2.06 Note: Rotary Sets before June 1966 were equipped with the 41A dial. Sets marked with an asterisk following the set code or a manufacture date of 6-66 or later are equipped with the 41B dial. These dials have different power requirements.
