Folder Kellogg Switchboard and Supply Company (includes ITT & Cortelco)

Kellogg Switchboard and Supply Company ?(Including USA made ITT Telephones and Cortelco Telephones)

A vast amount of information about Kellogg, ITT American made telephones and Cortelco telephones is available on Mike Neale's Kellogg Page which can be found at http://www.kelloggtelephone.com

Documents

pdf Desk Stands (Candlestick Telephones), 21098-9 Tl Popular

4041 downloads

Download (pdf, 311 KB)

21098-9_tl.pdf

Desk Stands (Candlestick Telephones), 21098-9 Tl

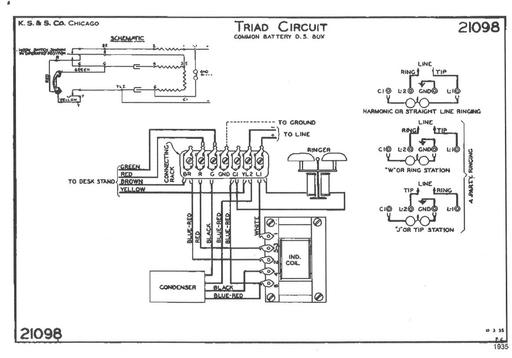

Desk Stands (Candlestick Telephones), Dial Desk Stand with 4 conductor subset, Scan provided by Mike Neale.

pdf Desk Stands (Candlestick Telephones), 21176 Tl Popular

3676 downloads

Download (pdf, 16 KB)

21176_tl.pdf

Desk Stands (Candlestick Telephones), 21176 Tl

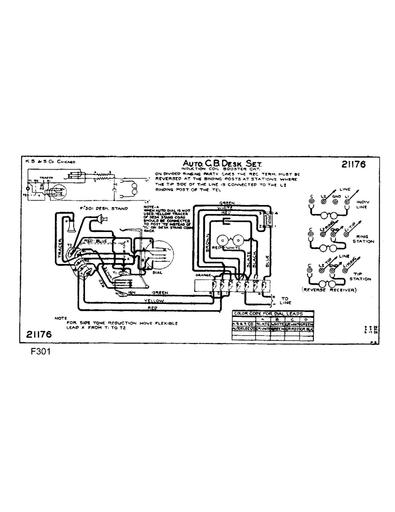

Desk Stands (Candlestick Telephones), F-301 Dial Desk Stand with any 3 conductor subset

pdf Desk Stands (Candlestick Telephones), 21188 Tl Popular

3619 downloads

Download (pdf, 15 KB)

21188_tl.pdf

Desk Stands (Candlestick Telephones), 21188 Tl

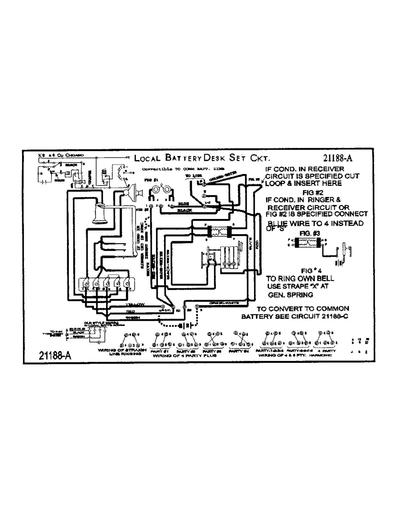

Desk Stands (Candlestick Telephones), Magneto Local Battery F-84 Desk Stand with Magneto Ringer Box

pdf Type 925 Telephones (Ashtray), 21236 Tl Popular

2037 downloads

Download (pdf, 21 KB)

21236_tl.pdf

Type 925 Telephones (Ashtray), 21236 Tl

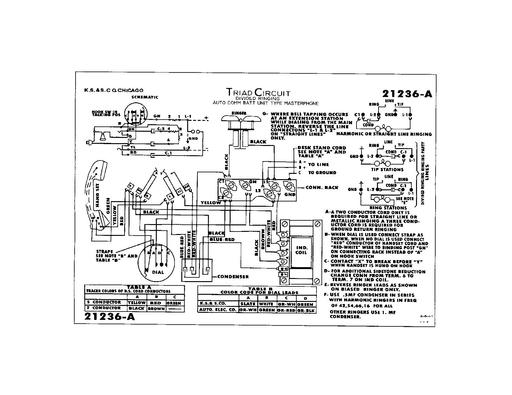

Type 925 Telephones (Ashtray), Common Battery, Manual or Dial

pdf Desk Stands (Candlestick Telephones), Cbdesk Tl Popular

3222 downloads

Download (pdf, 6 KB)

cbdesk_tl.pdf

Desk Stands (Candlestick Telephones), Cbdesk Tl

Desk Stands (Candlestick Telephones), Typical Common Battery Desk Stand with 3 wire cord

pdf ITT 2500 Style Telephones, Itt2575 Tl Popular

3136 downloads

Download (pdf, 86 KB)

itt2575_tl.pdf

ITT 2500 Style Telephones, Itt2575 Tl

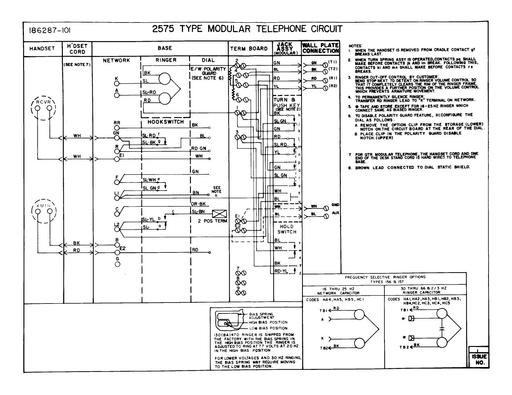

ITT 2500 Style Telephones, 2575 Modular Telephone (Wiring Diagram)

pdf Kellogg 500-Style Telephones, ITT Ringing Frequency Chart Popular

4856 downloads

Download (pdf, 15 KB)

ITT_500-type_sets_Ringer_Frequencies_tl_tci.pdf

Kellogg 500-Style Telephones, ITT Ringing Frequency Chart

Kellogg 500 Style Telephones, Frequency Ringer Codes

pdf ITT 2500 Style Telephones, K-2500 Tl Popular

3488 downloads

Download (pdf, 41 KB)

k-2500_tl.pdf

ITT 2500 Style Telephones, K-2500 Tl

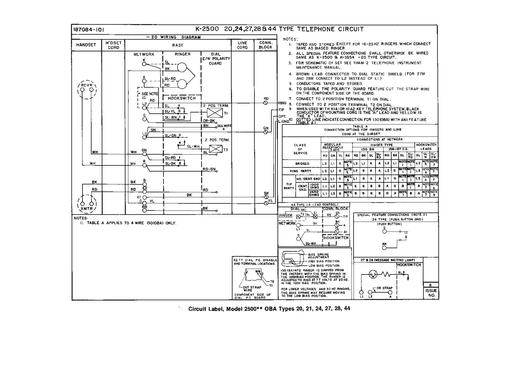

ITT 2500 Style Telephones,?2500 Telephone (Wiring Diagram), Excerpt from document provided by Dennis Hock and scanned by Kellogg Mike Neale.

pdf Kellogg 500 Style Telephones, K500 Tl Popular

2899 downloads

Download (pdf, 43 KB)

k500_tl.pdf

Kellogg 500 Style Telephones, K500 Tl

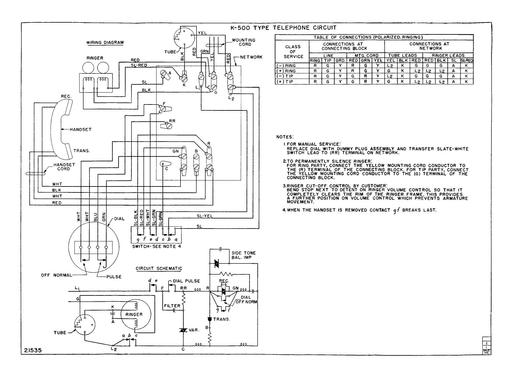

Kellogg 500 Style Telephones, K-500

pdf Type 1000 Telephones (Redbar), K1000 Tl Popular

3375 downloads

Download (pdf, 80 KB)

k1000_tl.pdf

Type 1000 Telephones (Redbar), K1000 Tl

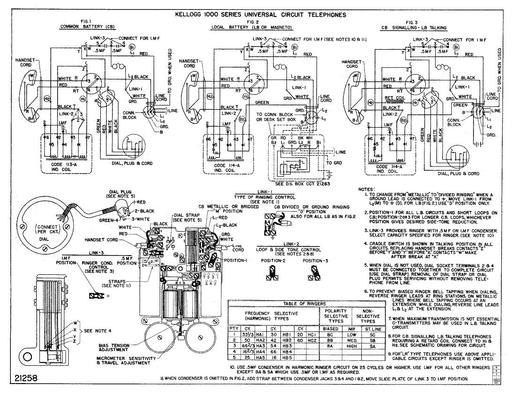

Type 1000 Telephones (Redbar), Original Drawing

pdf Kellogg 1500 Style Telephones, K1500 Tl Popular

2582 downloads

Download (pdf, 40 KB)

K1500_tl.pdf

Kellogg 1500 Style Telephones, K1500 Tl

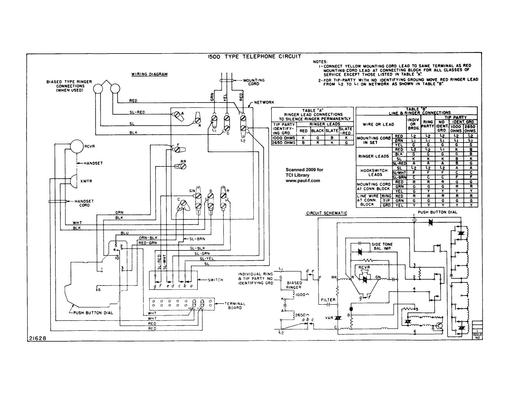

Kellogg 1500 Style Telephones, K-1500, Scan provided by Paul Fassbender.

pdf ITT Trendline Telephones, K2200 Tl Popular

2687 downloads

Download (pdf, 53 KB)

k2200_tl.pdf

ITT Trendline Telephones, K2200 Tl

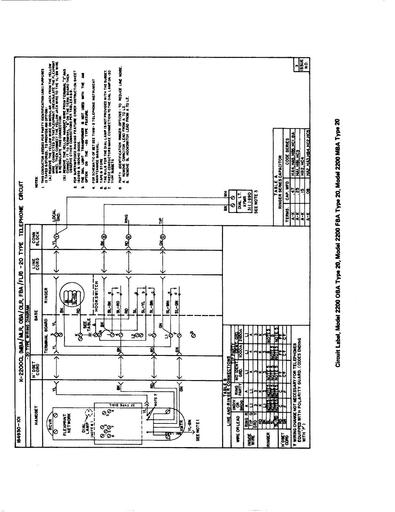

ITT Trendline Telephones, With 37 type dial

pdf Type 1000 Telephones (Redbar), K21258r Tl Popular

2152 downloads

Download (pdf, 132 KB)

k21258r_tl.pdf

Type 1000 Telephones (Redbar), K21258r Tl

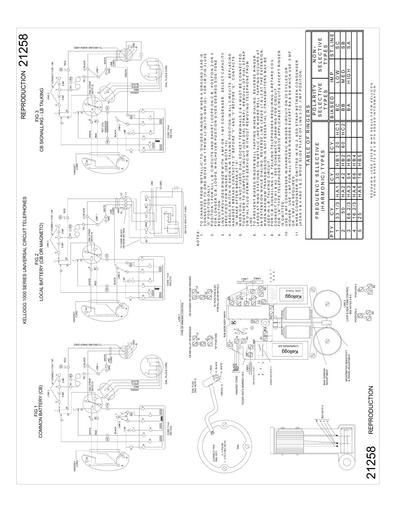

Type 1000 Telephones (Redbar), Alternate Drawing

pdf Desk Stands (Candlestick Telephones), Kellog4 Tl Popular

2956 downloads

Download (pdf, 4 KB)

kellog4_tl.pdf

Desk Stands (Candlestick Telephones), Kellog4 Tl

Desk Stands (Candlestick Telephones), Common Battery Desk Stand with Internal Induction Coil, Redrawn from original circuit label by Pete Z.

pdf Magneto Sets, Kpff Tl Popular

3334 downloads

Download (pdf, 26 KB)

kpff_tl.pdf

Magneto Sets, Kpff Tl

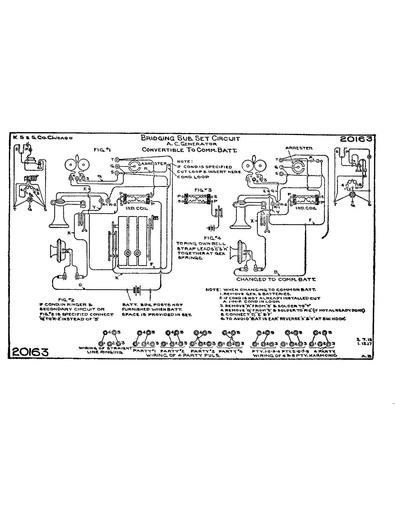

Magneto Sets, Picture Frame Front

pdf Kellogg Masterphone Wiring Diagrams, 1937-1942 - Blueprint-style Popular

3290 downloads

Download (pdf, 2.06 MB)

Kellogg Blueprint Drawings 1-5.pdf

Kellogg Masterphone Wiring Diagrams, 1937-1942 - Blueprint-style

Local Battery Masterphone circuit diagrams including: 21199 bracket-type?1936;? 21093 1942;?? 21208 1937;?? 21198 1939.
