Folder Northern Electric/Northern Telecom

Documents

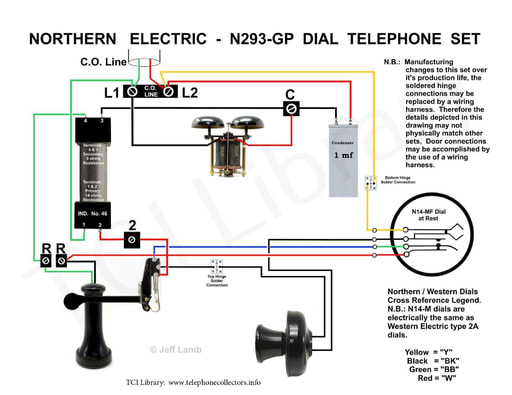

pdf NE N293 G Sidetone Dial Wall Set Wiring tci ocr Popular

651 downloads

Download (pdf, 149 KB)

NE_N293-G_Sidetone_Dial_Wall_Set_Wiring_tci_ocr.pdf

NE N293 G Sidetone Dial Wall Set Wiring tci ocr
Annotated and Contributed by Jeff Lamb.

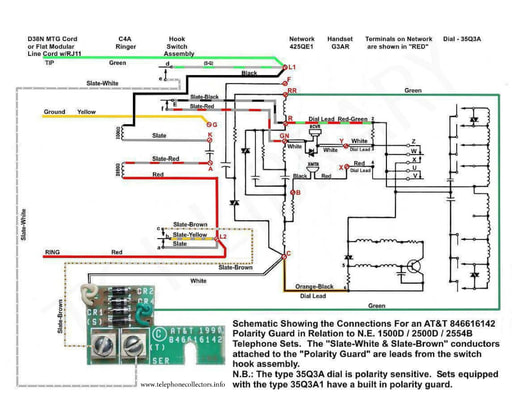

pdf NE 2500D Desk Set Wiring with Polarity Guard Add On tci ocr Popular

808 downloads

Download (pdf, 149 KB)

NE_2500D_Desk_Set_Wiring_with_Polarity Guard_Add-On_tci_ocr.pdf

NE 2500D Desk Set Wiring with Polarity Guard Add On tci ocr
Annotated and Contributed by Jeff Lamb.

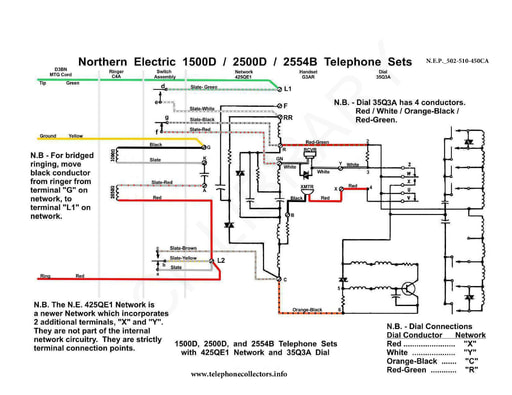

pdf NE 1500D 2500D 2554B Tel Sets Wiring tci ocr Popular

881 downloads

Download (pdf, 774 KB)

NE_1500D_2500D_2554B_Tel_Sets_Wiring_tci_ocr.pdf

NE 1500D 2500D 2554B Tel Sets Wiring tci ocr
Annotated and Contributed by Jeff Lamb.

pdf NE 500DR Wiring tci ocr Popular

713 downloads

Download (pdf, 177 KB)

NE_500DR_Wiring_tci_ocr.pdf

NE 500DR Wiring tci ocr
Annotated and Contributed by Jeff Lamb.

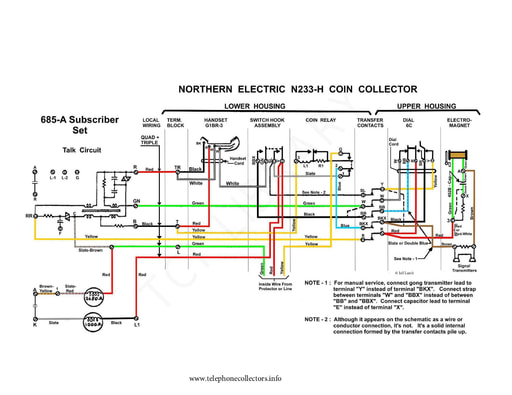

pdf NE 233 H Coin Collector w 685 A Subset tci ocr Popular

762 downloads

Download (pdf, 618 KB)

NE_233-H_Coin_Collector_w_685-A_Subset_tci_ocr.pdf

NE 233 H Coin Collector w 685 A Subset tci ocr
Annotated and Contributed by Jeff Lamb.

pdf 191 195 197 D and H w/ Single Coil Relay - Coin Collector Wiring modified Popular

1341 downloads

Download (pdf, 807 KB)

506_319_406_CA_Coin_Collector_Wiring_191_195_197_D_and_H_w_Single_Coil_Relay_modified_tci_ocr.pdf

191 195 197 D and H w/ Single Coil Relay - Coin Collector Wiring modified
Contributed by Jeff Lamb.

pdf NE Princess 702BQ1A with QNB17A Network Popular

856 downloads

Download (pdf, 292 KB)

NE_Princess_702BQ1A_with_QNB17A Network_tci.pdf

NE Princess 702BQ1A with QNB17A Network

From 502-710-403CA. Canada, Canadian. Contributed by Jeff Lamb.

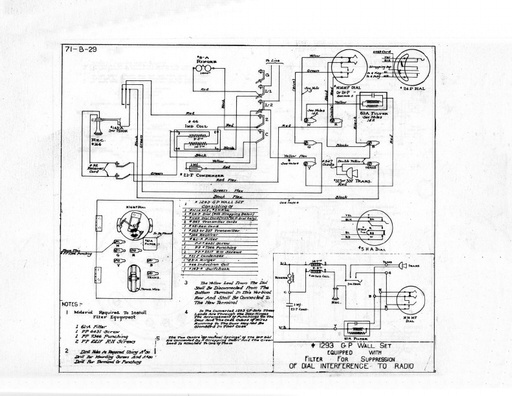

pdf NE N1293-GP N1293-GY N1293-A N1393-BA Schematics Popular

1108 downloads

Download (pdf, 1.04 MB)

NE_N1293_GP_N1293_GY_N1293_A_N1393_BA_Schematics_tci.pdf

NE N1293-GP N1293-GY N1293-A N1393-BA Schematics

Contributed by Jeff Lamb.

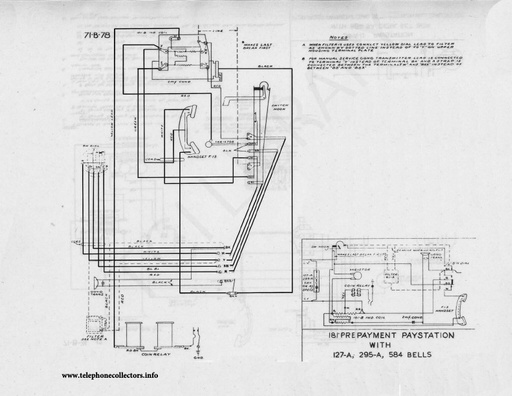

pdf NE Type 181 Prepayment Paystation ring ocr Popular

827 downloads

Download (pdf, 154 KB)

NE_Type_181_Prepayment_Paystation_ring_ocr_tci.pdf

NE Type 181 Prepayment Paystation ring ocr

Contributed by Jeff Lamb.

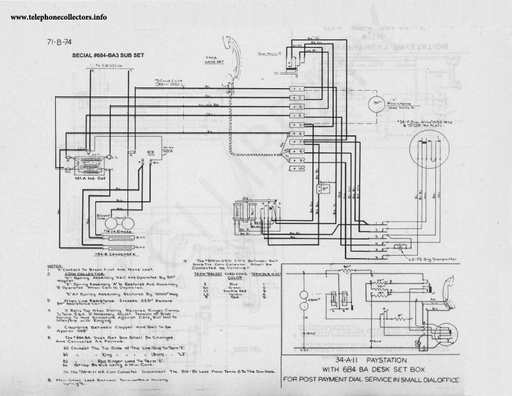

pdf NE Type 34 A 11 Paystation Post Pay wiring ocr Popular

1055 downloads

Download (pdf, 179 KB)

NE_Type_34-A-11_Paystation_Post_Pay_wiring_ocr_tci.pdf

NE Type 34 A 11 Paystation Post Pay wiring ocr

Contributed by Jeff Lamb.

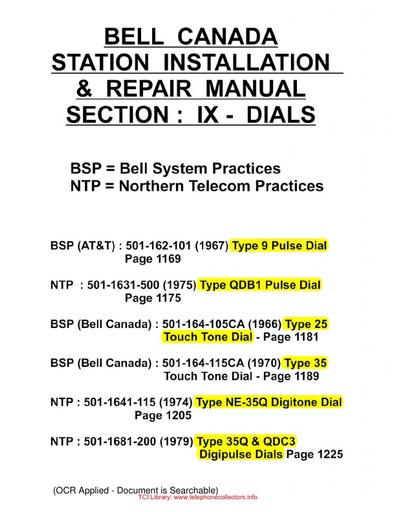

pdf Bell Canada Station Inst and Repair Manual Dials 1981 r tci JL Popular

3076 downloads

Download (pdf, 8.94 MB)

Bell_Canada_Station_Inst_and_Repair_Manual_Dials_1981_tci.pdf

Bell Canada Station Inst and Repair Manual Dials 1981 r tci JL

Contributed by Jeff Lamb.

Contains:
BSP (AT&T) : 501-162-101 i5 Dec 67 (1967) Type 9 Pulse Dial Page 1169
NTP : 501-1631-500 i1 Dec 75  (1975) Type QDB1 Pulse Dial Page 1175
BSP (Bell Canada) : 501-164-105CA iA Jul 66 (1966) Type 25 Touch Tone Dial - Page 1181
BSP (Bell Canada) : 501-164-115CA iC Jul 70 (1970) Type 35 Touch Tone Dial - Page 1189
NTP: 501-1641-115 i1 Feb 74 (1974) Type NE-35Q Digitone Dial Page 1205
NTP: 501-1681-200 i1 Jul 79 (1979) Type 35Q & QDC3 Digipulse Dials Page 1225

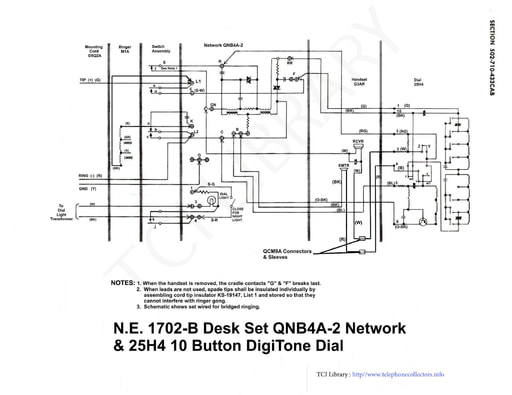

pdf NE 1702 B 10 Button DigiTone Princess Wiring w QNB4A 2 Network tci JL Popular

1054 downloads

Download (pdf, 594 KB)

NE_1702-B_10-Button_DigiTone_Princess_Wiring_w_QNB4A-2_Network_tci_JL.pdf

NE 1702 B 10 Button DigiTone Princess Wiring w QNB4A 2 Network tci JL

From 502-710-433CAB. Canada, Canadian. Contributed by Jeff Lamb.

pdf NE317 Wired For Common Battery Operation Popular

1299 downloads

Download (pdf, 274 KB)

NE317_Wired_For_Common_Battery_Operation.pdf

NE317 Wired For Common Battery Operation

Contributed by Jeff Lamb.

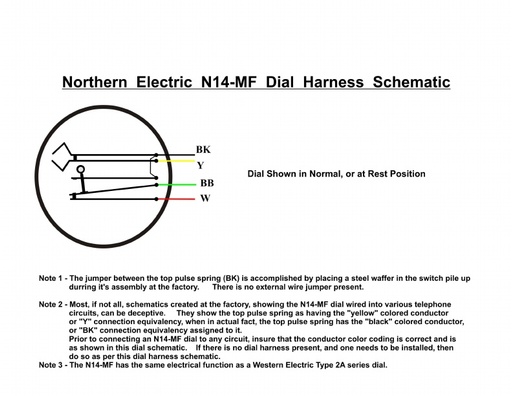

Image NE N14-MF Dial Schematic Popular

2835 downloads

Download (pdf, 644 KB)

NE_N14-MF_Dial_Schematic.pdf

NE N14-MF Dial Schematic

Contributed by Jeff Lamb.

pdf NE Uniphone 1 With N14MF Dial Wiring Popular

1775 downloads

Download (pdf, 1018 KB)

NE_Uniphone_1_with_N14MF_Dial_Wiring.pdf

NE Uniphone 1 With N14MF Dial Wiring

Contributed by Jeff Lamb.

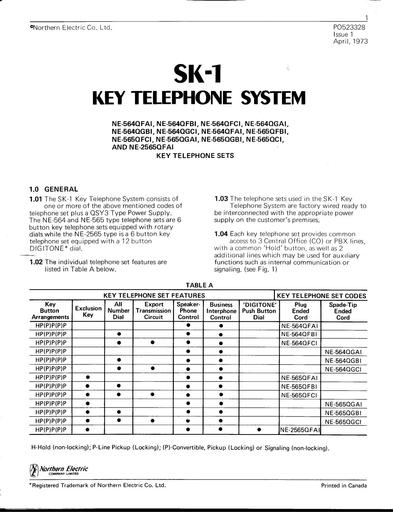

pdf NE SK-1 Key Telephone System, 564, 565 and 2565 sets P0523328 I1 Popular

2747 downloads

Download (pdf, 474 KB)

NE_PO523328_I1_Apr73_SK1_Key_Tel_Sys_564_656_Sets.pdf

NE SK-1 Key Telephone System, 564, 565 and 2565 sets  P0523328 I1

Issue 1, April 1973.  Wiring diagrams and connections for NE564, NE565 and NE2565-type sets when used with the SK-1 Telephone System.  Contributed by Louis Maffei.

pdf NE POS25748 522QA 522QB Telephone Sets (Elevator) - Connections Popular

1872 downloads

Download (pdf, 87 KB)

PO525748_I1_NE-522QA_QB_TelSets_Elevator_Connections.pdf

NE POS25748  522QA 522QB Telephone Sets (Elevator) - Connections
Submitted by Steve Cichorsky.

pdf NE N1150-AL Schematic Popular

2467 downloads

Download (pdf, 712 KB)

NE N1150-AL Schematic 300dpi.pdf

NE N1150-AL Schematic
The schematic is for a Northern Electric "N1150-AL".     The vast majority
of Northern desk stands equipped for automatic dial service, most notably,
the "N1050-AL", left the factory with the Northern "N" series dials, and
used a 3 conductor mounting cord for side tone circuits.

The N1150-AL schematic shows the set equipped with a Western designed, and I
would assume, a Northern made,  type 4H dial, and with a 4 conductor
mounting cord for anti side tone service.

pdf 2500 Type Desk and Wall Phones, NE-2500AX Tl Popular

3505 downloads

Download (pdf, 24 KB)

NE-2500AX_tl.pdf

2500 Type Desk and Wall Phones, NE-2500AX Tl

2500 Type Desk and Wall Phones, NE 2500AX. Scan by Dave Hunter.

pdf 2500 Type Desk and Wall Phones, NE-2500D Tl Popular

3934 downloads

Download (pdf, 78 KB)

NE-2500D_tl.pdf

2500 Type Desk and Wall Phones,  NE-2500D Tl

2500 Type Desk and Wall Phones, 2500D. Scan by Don Price.
